Today, it has become obvious to users that battery performance cannot be taken for granted. The cost of failures makes the cost of monitoring seem insignificant, especially in large data center applications where even a momentary power glitch to the computers can equate to many millions of dollars in losses. No matter if the battery system is Valve-Regulated Lead Acid (VRLA), Vented Lead Acid (VLA), or Nickel-Cadmium (NiCad), it is by far the most vulnerable and most failure-prone part of your backup power.



The lead acid battery of the staff and the maintenance of the automation to measure were expectey very much. BM3000 battery monitoring system is our 3rd Generation BM3000 will accurate and automatic measuring individual block product, which is modular level battery monitoring system for real-time data gathering, viewing and analyzing. This will provide documentary evidence on the life of each battery. Moreover, it can effective reduce the critical power failure incident and save maintenance cost.



Values and Benefits



Schematic Diagram



Description

BM3000 Battery Monitoring System is modular level design, which is easy for the installation and expansion.
The hardware of BM3000 composed with
→ Control Module,
→ Current Detector
→ Battery Sensor
→ Battery Managment Software



Measuring Parameter

 Battery Parameters are displayed,monitored, displayed and recorded as following,

-Battery voltage

-Battery Internal Resistance

-Terminal temperature

-Ambient temperature

-String Current

-System Total Current

-System Total Voltage

-Date & Time



Application

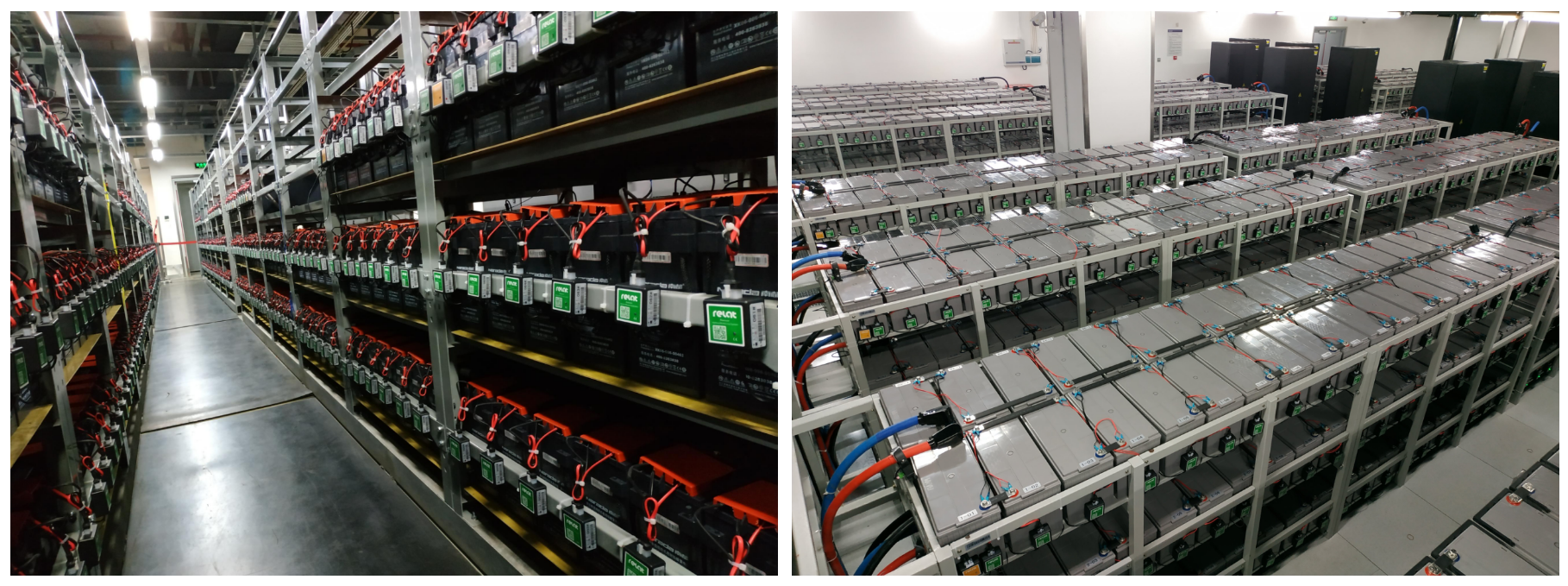

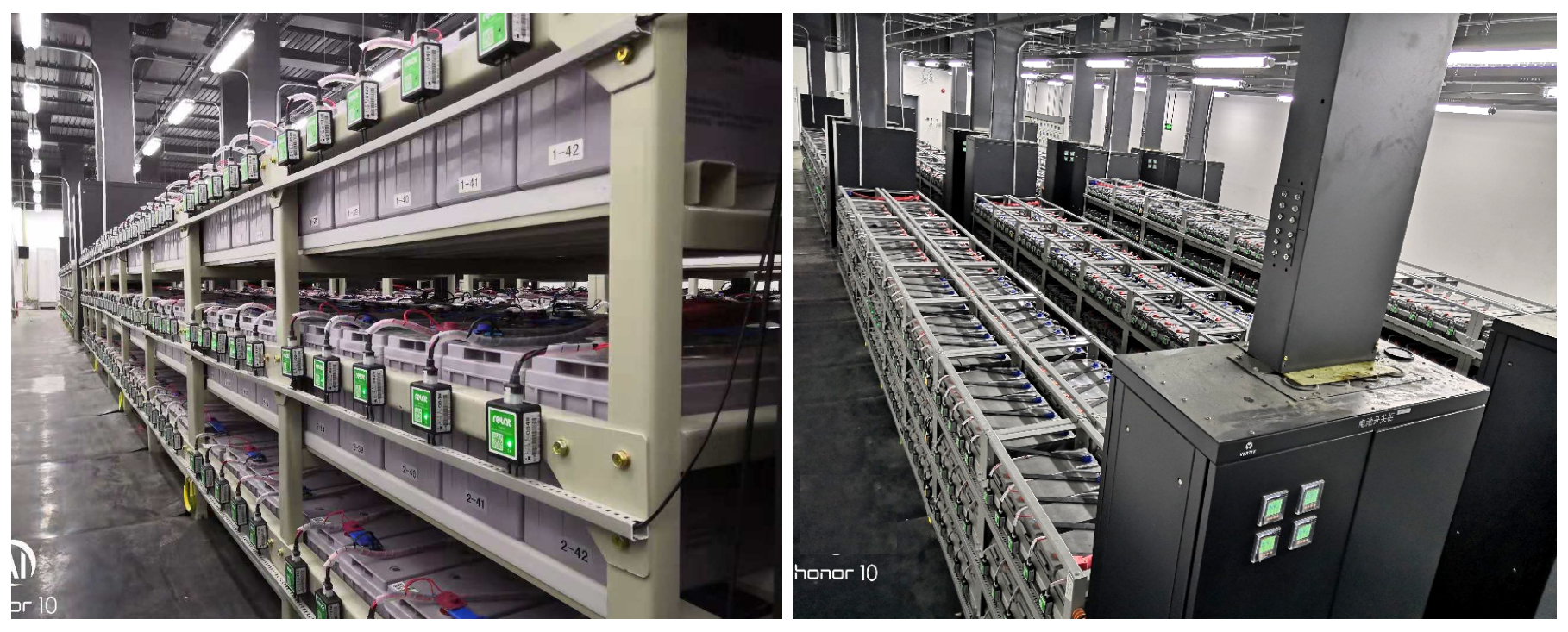

Project Reference

We are having long term collaboration with  21Vianet for battery monitoring project with turnkey solution in their data center infrastructure. Relat Technology Battery Monitoring System continusly measures and accurately transimits the battery performance data, it will effective prolong the battery life and reduce the maintain cost.

21Vianet operates in more than 20 cities throughout China, servicing a diversified and loyal base of nearly 5,000 hosting enterprise customers.
